(for underground)

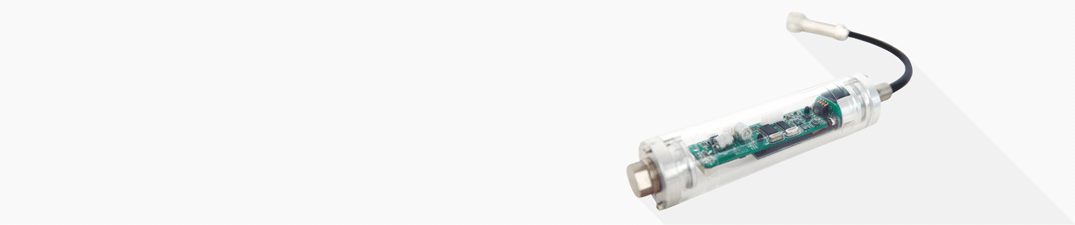

This system measures the angle and displacement of the underground through detection of gravitational acceleration with a new inclinometer model, for which the accelerometers of cars have been improved for usage in angle measurement.

This clinometer has two sensor elements and modified to dual check type, resulting in improved performance for anti-noise, thermal stability, and data stability during long time use. Landslide detection which requires highly precise measurement will be possible with this system.

In order to measure the angle and displacement of the underground, multiple inclinometers are set underground (maximum depth is 50m). Conventional inclinometers require one cable for each device, thus all the cables have to be connected to data logger.

By using the CAN*1 Protocol technology our system makes it possible to connect several inclinometers in series to only one cable. This makes easy multi-point measurement with only one cable connected to the data logger possible.

In 2003, we received a prize for technical development for the “development of a ground measurement system using accelerometers” from the Japan Society of Civil Engineers. And this system is registered in NETIS*2 which is new technology information system ran by Ministry of Land, Infrastructure and Transport.

  • *1 CAN : Controller Area Network
  • *2 NETIS : New Technology Information System

Special characteristics

  1. Easy installation
  2. Easy and safe measurements
  3. Long-term measurements, ranging from construction work to control measurements
  4. High economic efficiency
  • <Underground type connecting way>

  • <Ground surface type connecting way>


Inclinometer Specifications

Item Specifications Notes
Number of measurement axes 2 axes
Measurement sphere ±20 deg
Angle exchange method Capacitive acceleration sensor
Temperature exchange method IC temperature sensor
Rated output Approx. 40,000 digit
Resolution 1/1,000
Long term stability*3 1/1,000 / day
Characteristics for a temperature of 0℃ 8/1,000 / ℃
Nonlinearity 0.5% RO
Operating temperature limits -30~+60℃
Storage temperature limits -30~+80℃
IO cable Φ 9mm 4 core shield
Water pressure restance 0.5MPa
Sensor unit diameter Φ60 Including rib parts
Weight 1,800g
  • *3 “Long term stability“ means a change/fluctuation of output in situations in which an inclination is set up to a stable horizontal surface.

Data logger specifications

Item Specifications Notes
Operating temperature limits -20 ~ +60℃
Storage temperature limits -30 ~ +70℃
Number of installation points Maximum 100 (1 line until 50 instruments)
Cable extension distance 1 line 100m / 50 or less
1 line 500m / 100 or less
Correspondence method (between sensors) CAN V2, OB 1.25kbit/s
Correspondence method (between PCs, between modems) RS232C
Data storage method EEPROM Nonvolatile memory
Software Data collecting and Display software
External dimensions (WxHxD) 270×75×220mm
Weight 2,000g
Power supply AC100V (system drive: DC12V)
